 Ethernet Camera
(Under Development at SK Dynamics, India)


Hardware Description

 The Ethernet Camera is designed using Two boards:

¨                  First Board has Blackfin ADSP21535, SDRAM, FLASH, JTAG, USB port, Serial port, SPI Boot ROM, SD RAM and Power Supply.

¨                  Second Board has Camera Chip, Static RAM, Composite Video Chip, and PCI to USB converter Module, Network connector, Network Chip, Counters and Buffers.

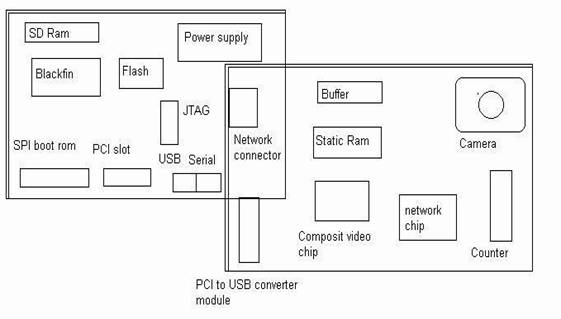

  Block Diagram
